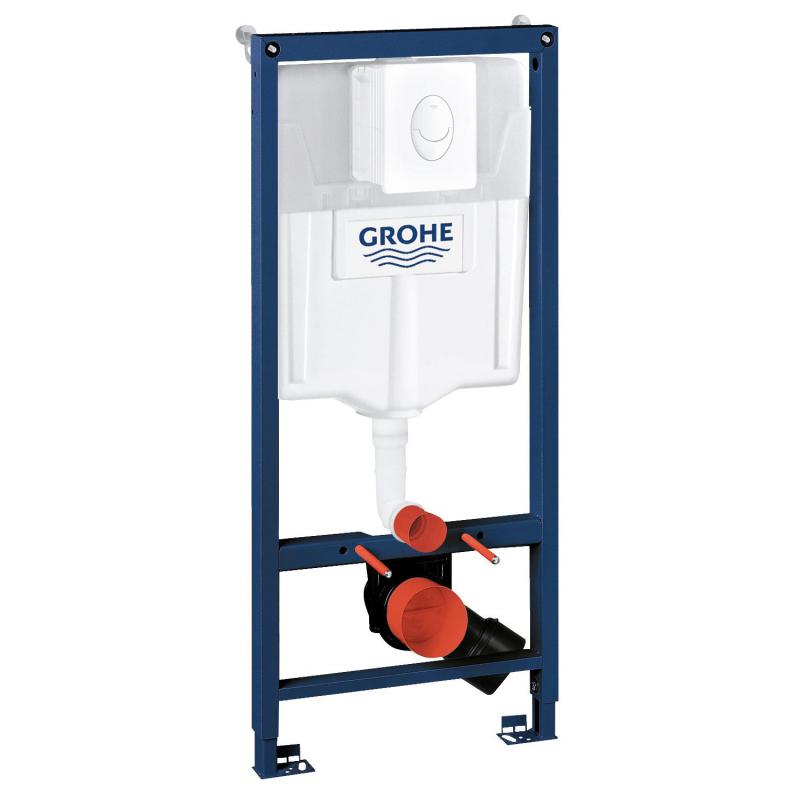

Mounting element for WC flushing cistern 3-in-1 set Grohe Rapid SL 38722001

Grohe Rapid SL 3 in 1 – Set for Toilet Cistern

• with small maintenance opening

• 1.13 m installation height

• for on-the-wall installations or studded walls

• powder-coated steel frame, self-supporting

• for dry-cladding, completely pre-assembled

• with fixed connections

• for single or series installation

• quick adjustment, lockable height

• set of fittings

• TÜV approved

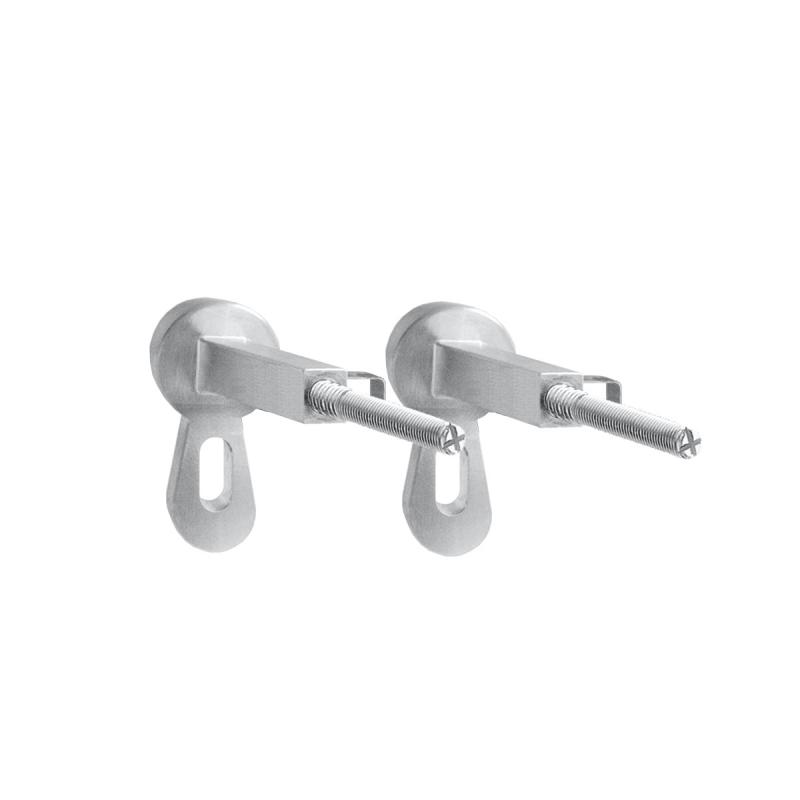

• 2 toilet fixing bolts

• fixing device for ceramic object

• distance of fixing bolts 180/230 mm

• outlet bend Ø 90 mm

• depth adjustable reducer Ø 90/110 mm

• inlet and outlet connecting set

• cistern GD 2, 6-9 l

• adjustment ex factory 6l and 3l

• pneumatic discharge valve offering 3 modes of operation: dual flush, start/stop flush, single flush

• water supply from left/right or back

• low noise: group I

• DIN approved

• insulated against condensation

• water supply connection 1/2″ with including integrated angle valve and push fit flexible hose union

• no tools required for the installation of the inspection shaft including protection during construction phase

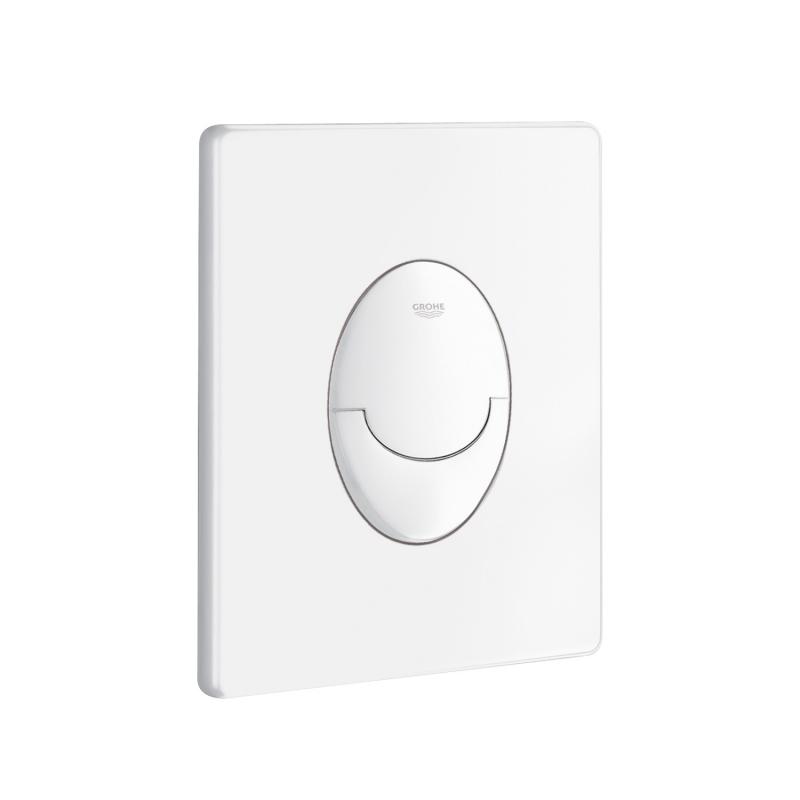

Flush Plate Skate Air white (38505SH0)

• dual flush or start/stop flush

• for vertical use

• save water with maximum comfort (GROHE EcoJoy®)

• dimensions: 156 x 197 mm
